HG701 Marathon 1/4 hp (1 speed) 115V 1800 RPM Open 48Y Frame Resilient Base Blower Motor
(No reviews)
Write a Review
Write a Review
Marathon
HG701 Marathon 1/4 hp (1 speed) 115V 1800 RPM Open 48Y Frame Resilient Base Blower Motor
$233.91
$202.40
SKU
HG701
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115V
Horsepower
1/4 HP
RPM
1800
Frame
48Y
Hertz
60 Hz
Amperage
5.1 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class B

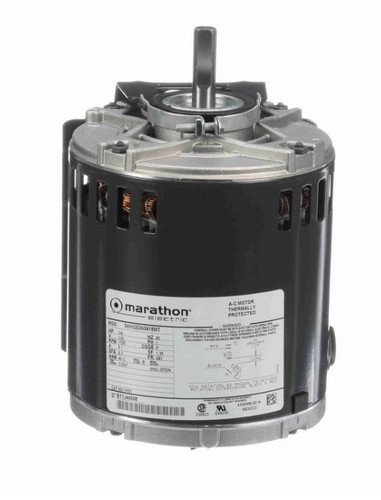

HG701 Marathon 1/4 hp (1 speed) 115V 1800 RPM Open 48Y Frame Resilient Base Blower Motor
The HG701 Marathon blower motor is a reliable 1/4 horsepower, single-speed motor designed for air circulation applications inside buildings. It is suitable for replacing or upgrading existing blower motors with similar specifications.
Key Specifications
- Horsepower: 1/4 hp
- RPM: 1800
- Voltage: 115V, 60 Hz
- Amperage: 5.1 amps
- Enclosure: Open
- Frame / Diameter: NEMA 48Y Frame
- Shaft Dimensions: 1 1/2" length x 1/2" diameter (flat shaft)
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a resilient base for stable mounting and includes thermal protection with an automatic reset. It operates on split phase power and is designed for versatile installation, allowing the shaft to be positioned vertically or horizontally to suit various blower configurations. The motor’s Class B insulation ensures durability in typical HVAC environments.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115V |
| Horsepower | 1/4 HP |
| RPM | 1800 |
| Frame | 48Y |
| Hertz | 60 Hz |
| Amperage | 5.1 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class B |
