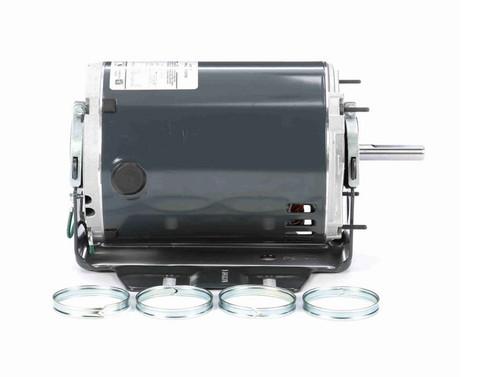

HG706 Marathon 1/3 hp (2 speed) 115V 1800/1200 RPM ODP 56Z Frame Resilient Base Blower Motor

HG706 Marathon 1/3 hp (2 speed) 115V 1800/1200 RPM ODP 56Z Frame Resilient Base Blower Motor

The HG706 Marathon blower motor is a versatile 1/3 horsepower, two-speed motor designed for HVAC applications requiring reliable air movement. It serves as a direct replacement for systems needing a 115V motor with dual speed options and a resilient base mount.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800/1200
• Voltage: 115 V, 60 Hz
• Amperage: 6.0/3.8 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56Z Frame
• Shaft Dimensions: 2" length x 1/2" diameter, flat shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and is designed for reversible shaft rotation to accommodate various blower configurations. It includes thermal auto-protection and Class B insulation for enhanced durability. The motor’s shaft orientation can be installed vertically or horizontally, making it suitable for a wide range of blower applications.

Warranty

1 Year Manufacturer Warranty
