HO20P3BLG Nidec 20 hp 1200 RPM 230/460V 3-phase 286TPH Frame Vertical Holloshaft Motor
HO20P3BLG Nidec 20 hp 1200 RPM 230/460V 3-phase 286TPH Frame Vertical Holloshaft Motor
HO20P3BLG Nidec 20 hp 1200 RPM 230/460V 3-phase 286TPH Frame Vertical Holloshaft Motor
HO20P3BLG Nidec 20 hp 1200 RPM 230/460V 3-phase 286TPH Frame Vertical Holloshaft Motor

Nidec

HO20P3BLG Nidec 20 hp 1200 RPM 230/460V 3-phase 286TPH Frame Vertical Holloshaft Motor

(No reviews) Write a Review
$6,482.55
$5,788.07
SKU HO20P3BLG
Availability Please email for availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 20 HP
RPM 1200
Phase Three Phase
Frame 286TPH
Hertz 60 Hz
Amperage 48.0/24.0 Amps
Bearings Ball Bearings
Insulation Class Class F
Adding to cart… The item has been added
Description
  • 20 HP 1200 RPM, 48.0/24.0 amps, 230/460V 60 Hz. 3-Phase

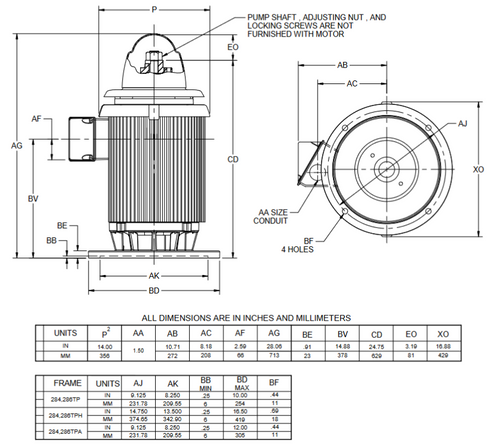

  • NEMA 286TPH Frame, AUS type, 16 1/2" Dia., 12" Dia. Base
  • 1.15 Service Factor, Class F insulation, Thermal Protection: None
  • Non-Reversible Ratchet Rotation, Weather Protected Enclosure
  • P-Base Mounting, Ball Bearings, High Thrust
  • Coupler: Non-Reverse Ratchet (NRR), Height - 25 7/8", Diameter - 1" , Keyway 1/4"

Vertical pump motor for use on turbine, mix flow, and propeller pumps. 1 Year Manufacture Warranty. FK97

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 20 HP
RPM 1200
Phase Three Phase
Frame 286TPH
Hertz 60 Hz
Amperage 48.0/24.0 Amps
Bearings Ball Bearings
Insulation Class Class F
!
