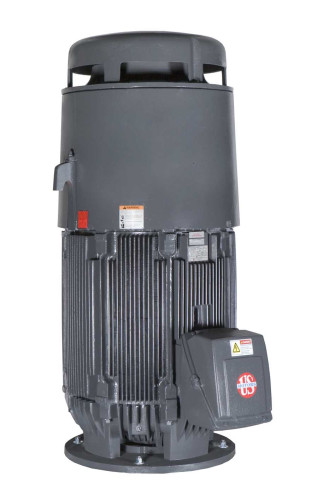

HO75V2SLG Nidec 75 hp 1800 RPM 460V 3-phase 365TP Frame Inverter-Duty Vertical Holloshaft Motor
HO75V2SLG Nidec 75 hp 1800 RPM 460V 3-phase 365TP Frame Inverter-Duty Vertical Holloshaft Motor
HO75V2SLG Nidec 75 hp 1800 RPM 460V 3-phase 365TP Frame Inverter-Duty Vertical Holloshaft Motor
HO75V2SLG Nidec 75 hp 1800 RPM 460V 3-phase 365TP Frame Inverter-Duty Vertical Holloshaft Motor

Nidec

HO75V2SLG Nidec 75 hp 1800 RPM 460V 3-phase 365TP Frame Inverter-Duty Vertical Holloshaft Motor

(No reviews) Write a Review
$10,922.70
$9,752.58
SKU HO75V2SLG
Availability Please email for availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 75 HP
RPM 1800
Phase Three Phase
Frame 365TP
Hertz 60 Hz
Amperage 87.0 Amps
Bearings Ball Bearings
Insulation Class Class F
Duty Inverter Duty
Adding to cart… The item has been added
Description
  • 75 HP 1800 RPM, 87.0 amps, 460V 60 Hz. 3-Phase Inverter Duty
  • NEMA 365TP Frame, RUSI type, 16.5" Dia. Base
  • 1.15 Service Factor, Class F insulation, Thermal Protection: None
  • Non-Reversible Ratchet Rotation, Weather Protected Enclosure
  • P-Base Mounting, Ball Bearings, High Thrust
  • Coupler: Non-Reverse Ratchet (NRR), Height - 31 5/32", Diameter - 1 ¼" , Keyway 1/4"

Vertical pump motor for use on turbine, mix flow, and propeller pumps. 1 Year Manufacture Warranty. HF60

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 75 HP
RPM 1800
Phase Three Phase
Frame 365TP
Hertz 60 Hz
Amperage 87.0 Amps
Bearings Ball Bearings
Insulation Class Class F
Duty Inverter Duty
!
