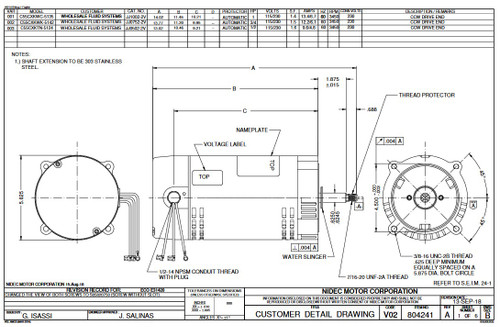

JJ0502-2V US Motors 1/2 hp 3450 RPM ODP 56J 115/230V Jet (Non-Pool) Pump Motor

JJ0502-2V US Motors 1/2 hp 3450 RPM ODP 56J 115/230V Jet (Non-Pool) Pump Motor

This US Motors pump motor is designed for jet pump applications (non-pool) requiring reliable performance and durability. It replaces standard 1/2 HP motors with a 56J frame and is suitable for various industrial and HVAC pump setups.

Key Specifications

• Horsepower: 1/2 HP
• RPM: 3450
• Voltage: 115/230V, 60 Hz
• Amperage: 9.6/4.8 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56J (no base)
• Shaft Dimensions: 1/2" diameter threaded stainless steel shaft
• Rotation: Counterclockwise (CCW) facing shaft, non-reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a capacitor start and a 1.6 service factor with Class B insulation and auto overload thermal protection for enhanced durability. It includes a C-face mount and two compartments for easy maintenance access. The wiring diagram is conveniently located on the motor nameplate to assist with installation.

Warranty

1 Year Manufacturer Warranty
