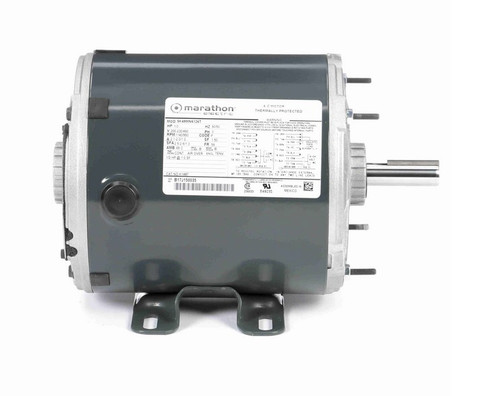

K1487 Marathon 1/3 hp (1 speed) 200-230/460V 1200 RPM TENV 56 Frame 3-Phase Rigid Base Motor

K1487 Marathon 1/3 hp 1-Speed 3-Phase Rigid Base Motor

This Marathon 1/3 horsepower motor is designed for commercial-grade transformer cooling and other industrial applications requiring reliable, continuous operation. It replaces similar 1-speed, 3-phase motors with a totally enclosed non-ventilated (TENV) design for enhanced protection in demanding environments.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1200
• Voltage: 200-230/460 V, 60 Hz
• Amperage: 2.1-2.0/1.0 A
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 56
• Shaft Dimensions: Keyed flat shaft, 1 7/8" length x 5/8" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and is reversible to accommodate different shaft rotation requirements. It includes thermal protection with an automatic reset and is built with Class B insulation for durability. The shaft orientation can be either vertical or horizontal, providing versatile mounting options.

Warranty

1 Year Manufacturer Warranty
