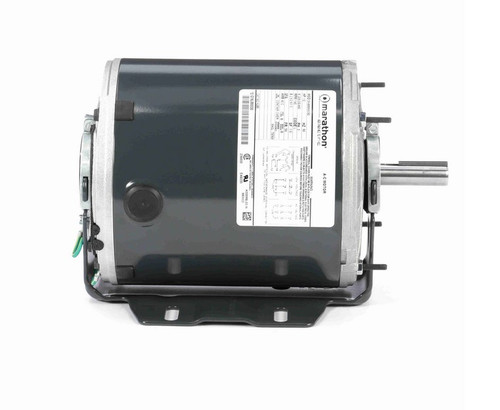

K285 Marathon 1/2 hp (1 speed) 208-230/460V 1200 RPM TENV 56 Frame 3 Phase Resilient Base Motor

K285 Marathon 1/2 hp (1 speed) 208-230/460V 1200 RPM TENV 56 Frame 3 Phase Resilient Base Motor

The K285 Marathon motor is a 1/2 horsepower, single-speed blower motor designed for industrial HVAC applications. It replaces the Century H1029 model and is suitable for use in systems requiring a totally enclosed, non-ventilated motor.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1200
• Voltage: 208-230/460 V, 60 Hz
• Amperage: 2.6-2.6/1.3 A
• Enclosure: Totally Enclosed Non-Ventilated (TENV)

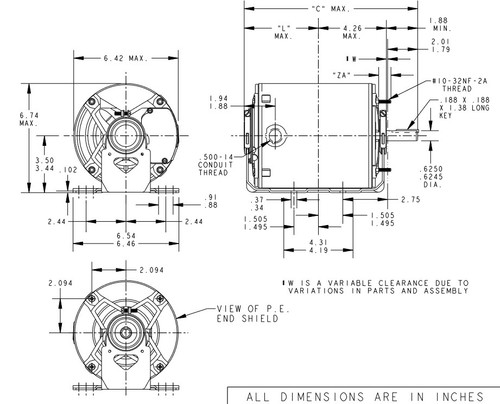

• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 1 7/8" length x 5/8" diameter, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and is designed for reversible operation to accommodate various blower configurations. It includes Class B insulation and does not have built-in thermal protection. The shaft orientation may be vertical or horizontal, allowing flexible installation in HVAC systems.

Cross Reference

• Century H1029

Warranty

1 Year Manufacturer Warranty
