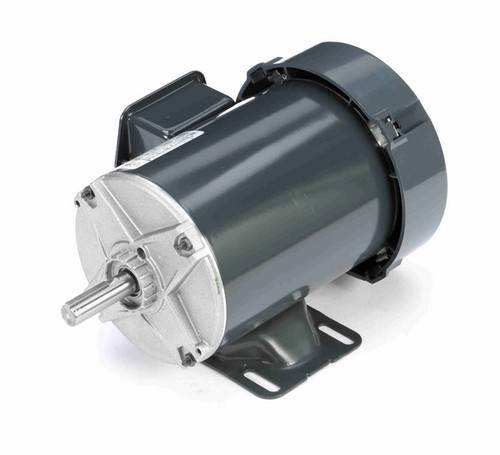

K160 Marathon 3/4 hp 208-230/460V 3600 RPM 3-Phase 56 Frame TEFC (rigid base) Motor

K160 Marathon 3/4 hp 208-230/460V 3600 RPM 3-Phase 56 Frame TEFC (rigid base) Motor

The K160 Marathon motor is a general-purpose, three-phase motor designed for industrial applications requiring reliable performance. It replaces Leeson C6T34FB2E (110313.00) and is ideal for use in systems without special requirements.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 3600
• Voltage: 208-230/460 V
• Amperage: 2.6-2.5/1.3 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 56 frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for secure installation and includes a keyed shaft to ensure proper coupling with driven equipment. It is equipped with Class B insulation and does not have thermal overload protection. Wiring diagrams are provided on the motor nameplate for ease of connection.

Cross Reference

• Leeson C6T34FB2E, 110313.00

Warranty

1 Year Manufacturer Warranty
