KBWC-13 | KB Electronics Solid State Variable Speed AC Electric Motor Control

The KBWC-13 is a solid state variable speed control designed for shaded pole and PSC motors, providing infinite speed adjustment for applications such as fans, blowers, fireplace blowers, attic fans, humidifiers, and ventilators. It is intended to replace standard motor speed controls in 115V systems with a maximum current of 2.5 amps.

Key Specifications

• Voltage: 115V
• Amperage: 2.5 Max amps

Product Features & Fitment

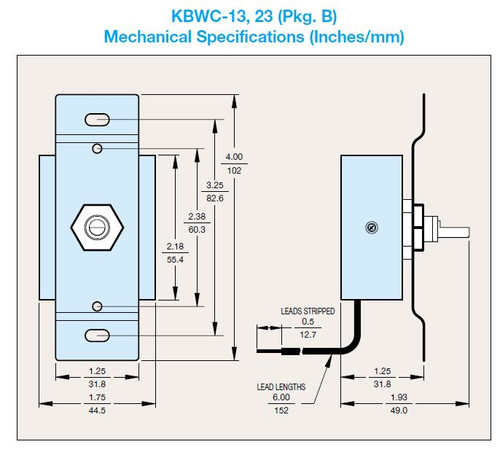

This control is designed to fit a standard 2" x 4" electrical wall box and includes a mounting kit with a dial plate, knob, mounting screws, wire connectors, and installation instructions. It is UL and CSA approved for safety compliance. The control must not be used with capacitor start or capacitor run motors, gear motors, or motors that may stall, as this can cause damage. Note that installed controls are non-returnable.

Warranty

• Data Sheet
