KBWC-28 | KB Electronics Solid State Variable Speed AC Electric Motor Control
The KBWC-28 is a solid state variable speed control designed for shaded pole and PSC motors, providing infinite speed adjustment up to 8.0 amps at 230 volts. It is ideal for applications such as fans, blowers, fireplace blowers, attic fans, humidifiers, and ventilators.
Key Specifications
- Voltage: 230V
- Amperage: 8.0 Max Amps
Product Features & Fitment

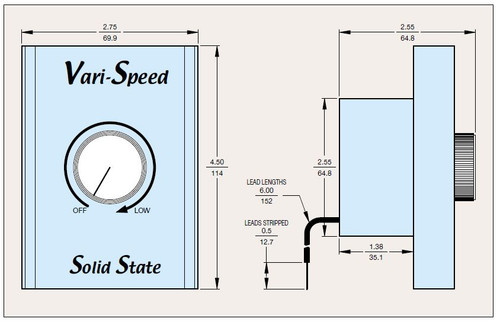

This control is designed to fit a standard 2" x 4" electrical wall box and includes a built-in heat sink that mounts flat against the wall on the outside of the box. The heat sink dimensions are 2.75" x 4.5" x 0.75". The mounting kit contains a dial plate, knob, mounting screws, wire connectors, and instructions for easy installation. The unit is UL and CSA approved and should not be used with capacitor start/run or gear motors. Proper motor torque is required to prevent stalling and potential damage. Controls that have been installed are non-returnable.
