Klauber RV Slide Out Motor # K01285B500

Klauber RV Slide Out Motor # K01285B500

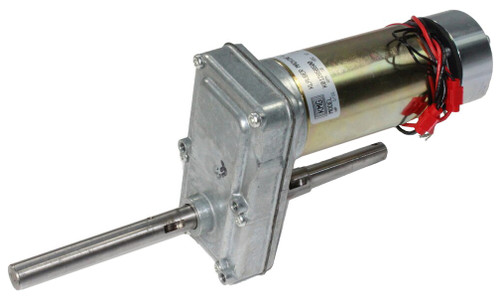

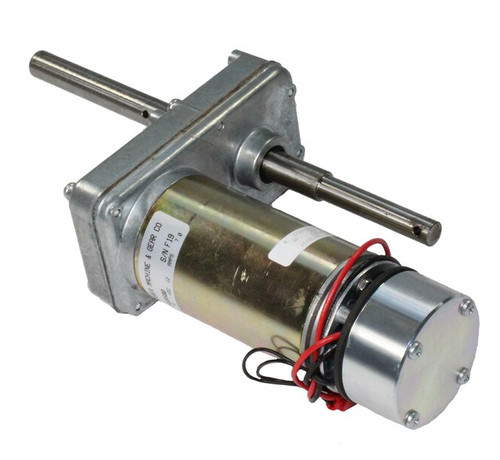

This brand new OEM slide out motor is designed to replace the Klauber K01285B500 model, providing reliable power for RV slide out mechanisms. It operates on 12 Volts DC and is suitable for applications requiring controlled, low-speed torque.

Key Specifications

• Voltage: 12 Volts DC
• Amperage: 7.0 AMPS
• RPM: 10 RPM
• Torque: 250 in-lbs
• Shaft Dimensions: Double output shaft (refer to dimensional drawing for sizes)

Product Features & Fitment

The motor includes an electric brake for secure operation and is made in the USA. Installation requires transferring the old spring mechanism to the new motor, as the shaft must move 5/16 inch to engage the gear drive properly. Please consult the dimensional drawing to confirm shaft sizes and ensure compatibility.

Cross Reference

• S:  K01285-B500, K01285B500
