107037.00 Leeson | Parallel Shaft 1/2 hp, 288 RPM 208-230/460 Electric Gear Motor

107037.00 Leeson Parallel Shaft 1/2 hp Electric Gear Motor

This Leeson parallel shaft gear motor delivers reliable performance with a 1/2 horsepower rating and a 288 RPM output. Designed for industrial applications requiring precise speed and torque control, it operates on three-phase power and can replace similar 208-230/460 Volt motors.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 288
• Voltage: 208-230/460 Volts, 60 Hz
• Amperage: 2.0/1.0 Amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Shaft Dimensions: 3/4" diameter x 1.5" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This gear motor features a gear ratio of 6 and delivers 100 inch-pounds of torque with an overhung load capacity of 400 pounds. It includes Class F insulation and a service factor of 1.15, ensuring durability under demanding conditions. The motor’s reversible rotation and keyed shaft facilitate versatile installation options in various industrial equipment.

Warranty

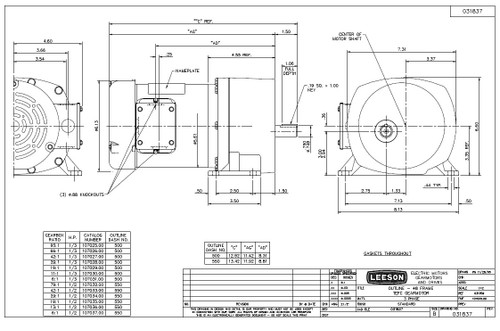

• Dimensional Drawing
