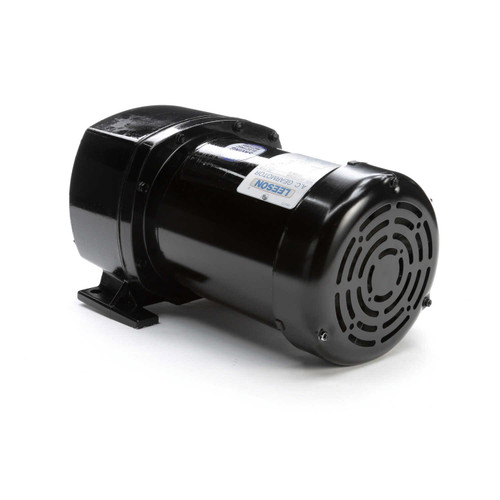

107033.00 Leeson | Parallel Shaft 1/2 hp, 41 RPM 208-230/460 Electric Gear Motor

107033.00 Leeson Parallel Shaft 1/2 hp, 41 RPM 208-230/460 Electric Gear Motor

This Leeson parallel shaft electric gear motor delivers reliable performance for industrial applications requiring low-speed, high-torque output. It is designed to replace similar 1/2 hp motors and is ideal for machinery needing precise speed control and durable operation.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 41
• Voltage: 208-230/460 V, 60 Hz, Three Phase
• Amperage: 2.0/1.0 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Shaft Dimensions: 3/4" diameter x 1.5" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a gear ratio of 42, providing 700 inch-pounds of torque with an overhung load capacity of 650 pounds. It is equipped with Class F insulation and a service factor of 1.15 for enhanced durability. The reversible shaft rotation and keyed shaft design facilitate flexible installation options in various industrial setups. Note that this model does not include overload protection.

Warranty

• Dimensional Drawing
