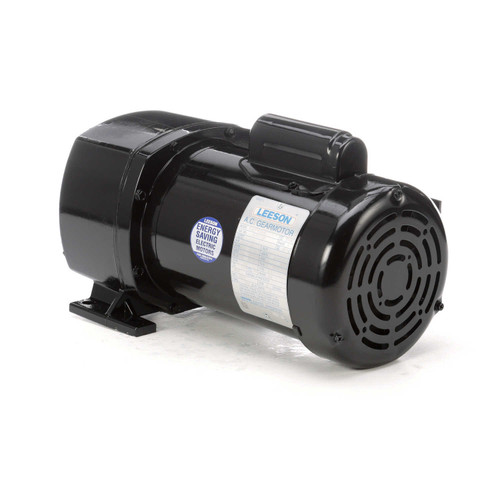

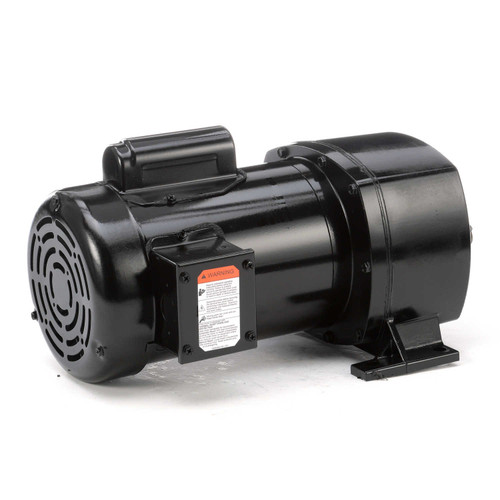

107016.00 Leeson | Parallel Shaft 1/2 hp, 59 RPM 115/208-230 Electric Gear Motor

107016.00 Leeson Parallel Shaft 1/2 hp, 59 RPM 115/208-230 Electric Gear Motor

This Leeson parallel shaft gear motor delivers 1/2 horsepower at 59 RPM and is designed for industrial applications requiring reliable torque and reversible rotation. It serves as a suitable replacement for Baldor GLP3342 and Bison 014-482-2029 motors, ensuring compatibility with existing equipment when shaft and mounting specifications are matched.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 59
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 8.8/4.4 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Shaft Dimensions: 3/4" diameter x 1.5" length, keyed
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features a gear ratio of 29 and delivers 496 inch-pounds of torque with an overhung load capacity of 625 pounds. It includes Class F insulation and a service factor of 1.15 but does not have overload protection. Verify shaft size and mounting compatibility to ensure proper interchange with your existing setup.

Cross Reference

• Baldor GLP3342, Bison 014-482-2029 - Please cross check your existing motor specs, shaft and mounting to make sure the replacement Leeson will interchange with your existing equipment

Warranty

• Dimensional Drawing
