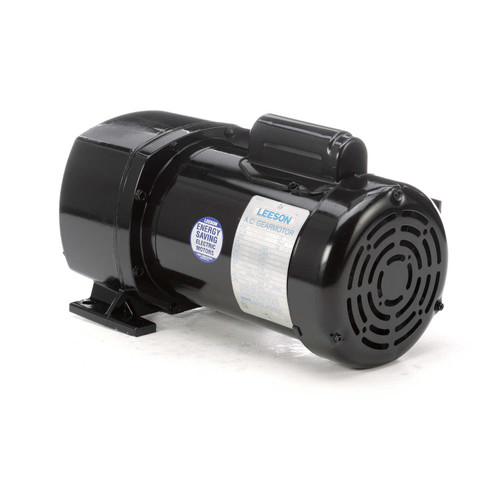

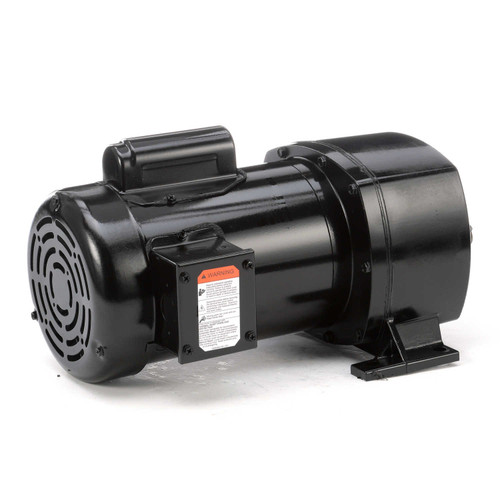

107010.00 Leeson Parallel Shaft 1/3 hp, 59 RPM 115/208-230 Electric Gear Motor
This Leeson parallel shaft gear motor delivers reliable 1/3 horsepower performance with a low-speed output of 59 RPM. Designed for industrial applications requiring precise torque and reversible rotation, it serves as a direct replacement for compatible 107010 series motors.
Key Specifications
- Horsepower: 1/3 hp
- RPM: 59
- Voltage: 115/208-230 V, 60 Hz
- Amperage: 6.2 / 3.1 A
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Shaft Dimensions: 3/4" diameter x 1.5" length, keyed
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a gear ratio of 29 and delivers 330 inch-pounds of torque with an overhung load capacity of 625 pounds. It is built with Class B insulation and a service factor of 1.15 for enhanced durability. The motor’s keyed shaft and ball bearings ensure secure mounting and smooth operation in a variety of industrial gear-driven applications.
