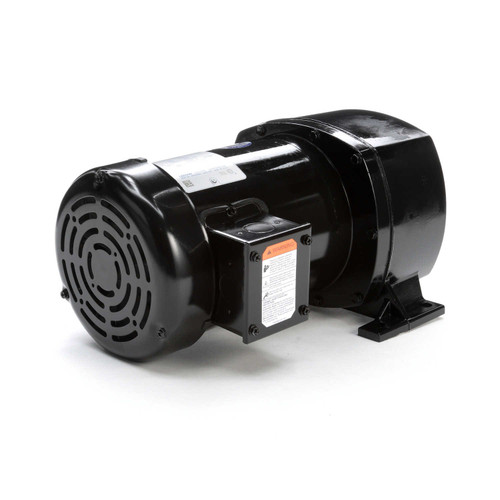

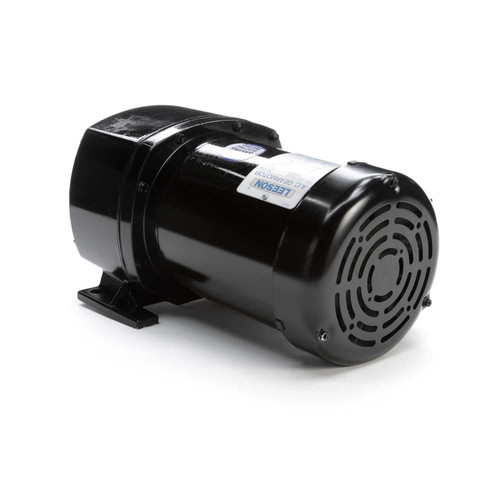

107034.00 Leeson | Parallel Shaft 1/2 hp, 59 RPM 208-230/460 Electric Gear Motor

• 1/2 hp, 59 RPM, 2.0/1.0 amps, 208-230/460 Volts 60hz. Three Phase
• Gear Ratio = 29
• Torque 496 inch pounds
• Over Hung Pounds = 625
• Shaft 3/4" x 1.5", Rotation = Reversible
• Overload Protection = None
• Class F Insulation; Service Factor 1.15
• TEFC = Totally Enclosed Fan Cooled
• Keyed Shaft, Ball Bearings
• One Year Manufacture Warranty.

C4T17FZ50B, 107034.00

Suitable replacement for Baldor GMP3342, Bison 017-482-0029 - Please cross check your existing motor specs, shaft and mounting to make sure the replacement Leeson will interchange with your existing equipment
