sale
Leeson

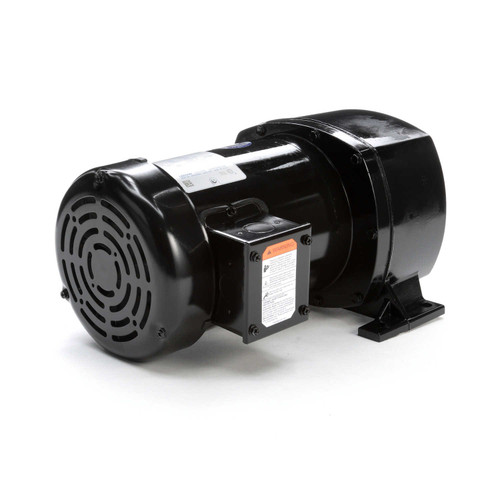

107029.00 Leeson | Parallel Shaft 1/3 hp, 91 RPM 208-230/460 Electric Gear Motor
(No reviews)
Write a Review
Write a Review
Leeson
107029.00 Leeson | Parallel Shaft 1/3 hp, 91 RPM 208-230/460 Electric Gear Motor
$1,219.33
$1,133.00
SKU
107029
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
1/3 HP
Phase
Three Phase
Enclosure
TEFC
Hertz
60 Hz
Amperage
80 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
107029.00 Leeson | Parallel Shaft 1/3 hp, 91 RPM 208-230/460 Electric Gear Motor
This Leeson parallel shaft electric gear motor delivers reliable performance for industrial applications requiring low-speed, high-torque output. It is designed to replace similar 1/3 hp motors and is ideal for machinery needing precise speed control and reversible operation.
Key Specifications
- Horsepower: 1/3 hp
- RPM: 91
- Voltage: 208-230/460 Volts, 60 Hz, Three Phase
- Amperage: 1.6/0.80 amps
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Shaft Dimensions: 3/4" diameter x 1.5" length, keyed
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a gear ratio of 19, providing a torque output of 224 inch-pounds and an overhung load capacity of 575 pounds. It is built with Class F insulation and a service factor of 1.15, ensuring durability under demanding conditions. The motor does not include overload protection and is designed for straightforward installation in compatible equipment requiring a parallel shaft configuration.
Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230/460V |
| Horsepower | 1/3 HP |
| Phase | Three Phase |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 80 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
