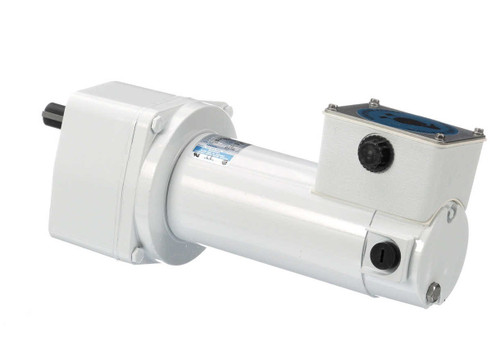

M1125272.00 Leeson | Parallel Shaft Wash Down 1/4 hp, 500 RPM 90 Volts DC TENV Electric Gear Motor

M1125272.00 Leeson Parallel Shaft Wash Down 1/4 hp, 500 RPM 90 Volts DC TENV Electric Gear Motor

This Leeson electric gear motor is designed for wash down duty applications requiring reliable, reversible operation. It features a parallel shaft configuration with a totally enclosed non-ventilated (TENV) enclosure, suitable for environments where moisture resistance is critical.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 500
• Voltage: 90 Volts DC
• Amperage: 2.4 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Shaft Dimensions: 3/4" diameter x 1.63" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor incorporates precision-machined in-line steel gears, starting with a steel helical first stage followed by spur-type gears for efficient torque transmission. It uses permanent semi-fluid grease lubrication to minimize leakage risk. Hardened steel output shafts with needle bearings provide high load capacity and durability. This motor is compatible with Leeson speed controls models 174307, 174107, and 174102 for adjustable speed operation.

Warranty

1 Year Manufacturer Warranty
