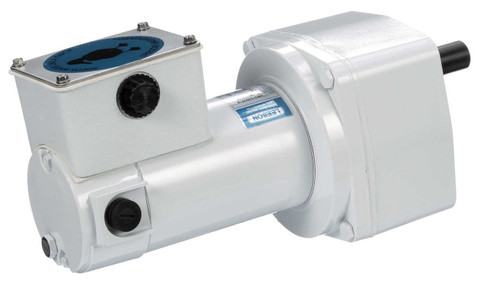

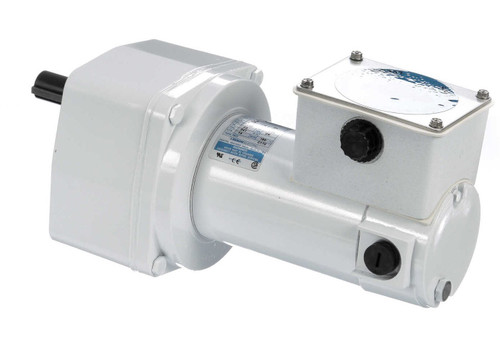

M1125268.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 14 RPM 90 Volts DC TENV Electric Gear Motor
M1125268.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 14 RPM 90 Volts DC TENV Electric Gear Motor
M1125268.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 14 RPM 90 Volts DC TENV Electric Gear Motor
M1125268.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 14 RPM 90 Volts DC TENV Electric Gear Motor
M1125268.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 14 RPM 90 Volts DC TENV Electric Gear Motor
M1125268.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 14 RPM 90 Volts DC TENV Electric Gear Motor
M1125268.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 14 RPM 90 Volts DC TENV Electric Gear Motor
M1125268.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 14 RPM 90 Volts DC TENV Electric Gear Motor

Leeson

M1125268.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 14 RPM 90 Volts DC TENV Electric Gear Motor

(No reviews) Write a Review
$833.75
$706.33
SKU M1125268
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM

CURRENTLY OUT OF STOCK

Description
  • 1/8 hp, 14 RPM, 1.5 amps, 90 Volts DC
  • Gear Ratio = 180
  • Torque 341 inch pounds
  • Over Hung Pounds = 465
  • Shaft 3/4" x 1.63"; Rotation = Reversible
  • TENV = Totally Enclosed Non Ventilated
  • Wash Down Duty
  • Class F Insulation; Service Factor 1.0
  • Keyed Shaft, Ball Bearings
  • One Year Manufacture Warranty.

Features: Precision machined in-line steel gears, with a first stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, reducing possibility of leakage.Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Can use with Leeson speed control 174307, 174107, 174102

CM31D25VZ1A, M1125268.00
