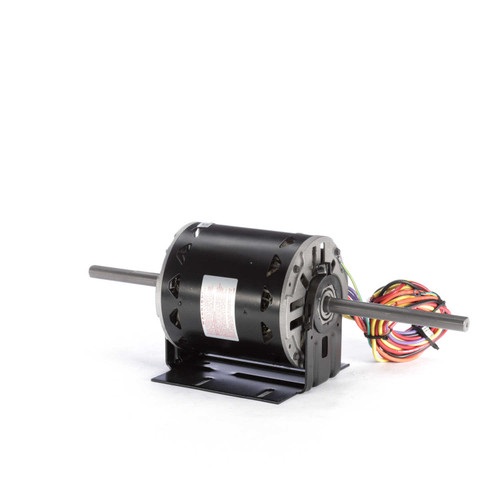

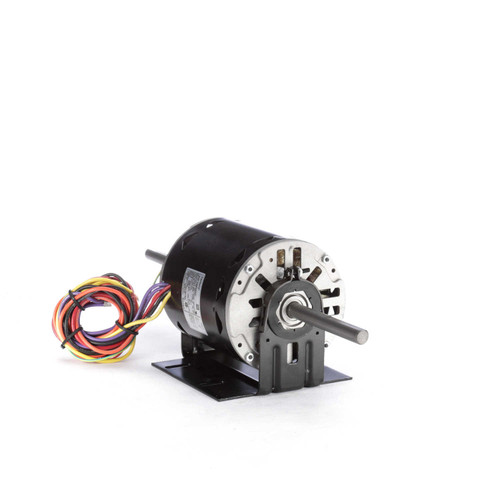

Model 9406A Century Lennox Furnace Motor (P-8-6426) 3/4 hp 1075 RPM 208-230V Century # 9406A

Model 9406A Century Lennox Furnace Motor (P-8-6426) 3/4 hp 1075 RPM 208-230V

The Model 9406A is a 3/4 horsepower furnace motor designed for Century and Lennox heating systems. It serves as a reliable replacement for multiple OEM part numbers, ensuring compatibility with various furnace models.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 6.6 amps
• Frame / Diameter: 5 5/8"
• Enclosure: 3-Speed
• Shaft Dimensions: 5/8" diameter x 5 1/4" length, 6 1/2" shaft length
• Rotation: CCW Lead End
• Bearings: Ball Bearings

Product Features & Fitment

This motor requires a 10 MFD 370V capacitor for operation (sold separately, Part #10DV). It includes 54-inch leads for electrical connections and is designed for straightforward installation as a direct replacement for models such as K55HXRYT-8180, 5KCP35SN495, and P-8-6426. The compact motor case length of 5 1/4" facilitates fitment in tight furnace compartments.

Cross Reference

• K55HXRYT-8180, K55HXRYT8180, K8180, D813, 5KCP35SN495, 5KCP49NG1009, 31C8201, P-8-6426, HE3U074, HF3U069

Warranty

1 Year Manufacturer Warranty
