Model 9484 Century Lennox Furnace Motor (P-8-9584) 1/15 hp 1050 RPM 208-230V Century # 9484
Model 9484 Century Lennox Furnace Motor (P-8-9584) 1/15 hp 1050 RPM 208-230V Century # 9484
Model 9484 Century Lennox Furnace Motor (P-8-9584) 1/15 hp 1050 RPM 208-230V Century # 9484
Model 9484 Century Lennox Furnace Motor (P-8-9584) 1/15 hp 1050 RPM 208-230V Century # 9484
Model 9484 Century Lennox Furnace Motor (P-8-9584) 1/15 hp 1050 RPM 208-230V Century # 9484
Model 9484 Century Lennox Furnace Motor (P-8-9584) 1/15 hp 1050 RPM 208-230V Century # 9484

Century Electric Motor

Model 9484 Century Lennox Furnace Motor (P-8-9584) 1/15 hp 1050 RPM 208-230V Century # 9484

(No reviews) Write a Review
$402.85
$341.44
SKU 9484
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230V
Horsepower 1/15 HP
RPM 1050
Amperage 8 Amps
Bearings Sleeve Bearings
Speeds 1-Speed
Rotation Clockwise
Adding to cart… The item has been added

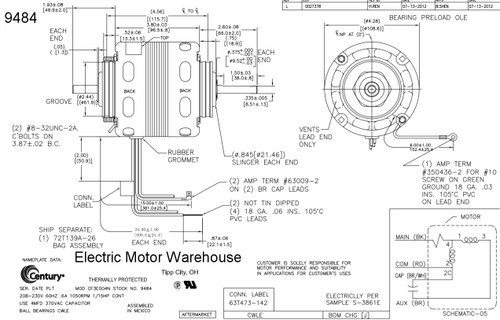

Description
  • 1/15 hp, 1050 RPM, 1-Speed, .8 amps, 208-230V
  • Rotation: CW Lead End
  • Motor Diameter = 4 5/16"
  • Motor Case Length = 3 3/4"
  • Shaft 5/16" 3/8" x 2 5/8"
  • 4MFD 370V Capacitor REQUIRED (Our Part #4DV)
  • Sleeve Bearings; 24" Leads
  • 1 Year Manufacture Warranty

Suggested replacement reference for: Lennox P-8-9584, P89584, CF3E004. Dayton 48X949

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230V
Horsepower 1/15 HP
RPM 1050
Amperage 8 Amps
Bearings Sleeve Bearings
Speeds 1-Speed
Rotation Clockwise
!
