OMC6517 Century Magic Chef Furnace Motor 1/5 hp 1075 RPM 208-230V Century # OMC6517

OMC6517 Century Magic Chef Furnace Motor 1/5 hp 1075 RPM 208-230V

This Century Magic Chef furnace motor is a reliable replacement for various furnace motor models including F42B59A01, F42C52A45, 35035B001, 322P859, and Dayton 48Y006. Designed for residential HVAC applications, it delivers consistent performance with a 1/5 horsepower motor operating at 1075 RPM.

Key Specifications

• Horsepower: 1/5 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 1.5 amps
• Enclosure: Enclosed on back, open on shaft end
• Frame / Diameter: 5" diameter
• Shaft Dimensions: 1/2" diameter x 3 7/8" length
• Rotation: Counterclockwise (CCW) shaft end

Product Features & Fitment

The motor features three studs on the back for secure mounting and comes with three 35-inch leads for easy electrical connections. A 5 MFD 370V capacitor (Century part #5DV) is required for proper operation but is sold separately. The compact motor case length of 3 3/8" allows for straightforward installation in compatible furnace assemblies.

Cross Reference

• F42B59A01, F42C52A45, 35035B001, 322P859, Dayton 48Y006

Warranty

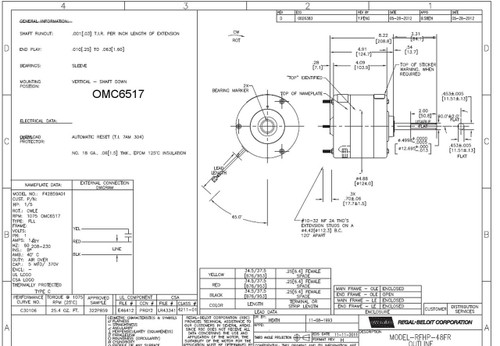

• Dimensional Drawing
