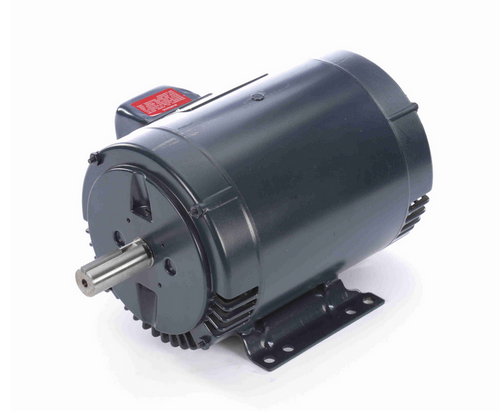

Model TO122 Century 5 hp 1800 RPM 3-Phase 184T Frame ODP (rigid base) 200V Century Motor # TO122

Model TO122 Century 5 hp 1800 RPM 3-Phase 184T Frame ODP (Rigid Base) 200V Century Motor

This Model TO122 Century motor is a general-purpose 5 horsepower, 1800 RPM, three-phase motor designed for industrial applications requiring reliable performance. It is suitable for replacing similar NEMA 184T frame motors with a rigid base mount and keyed shaft.

Key Specifications

• Horsepower: 5 hp
• RPM: 1800
• Voltage: 200 V
• Amperage: 14.7 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 184T
• Shaft Dimensions: 1 1/8" diameter x 2 3/4" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base with dual frame mounting holes for secure installation. It includes a keyed shaft for positive drive connection and is reversible to accommodate various operational requirements. The wiring diagram is located on the motor nameplate for ease of setup. The motor is built with Class F insulation and meets NEMA premium efficiency standards.

Warranty

1 Year Manufacturer Warranty
