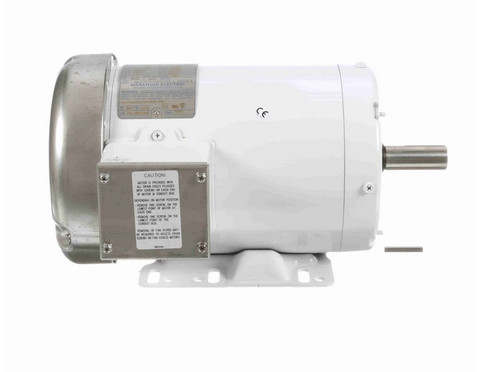

N321A Marathon 1 1/2 hp 1800 RPM 230/460V 3-Phase 145T Frame TEFC (rigid base) Washdown Motor

N321A Marathon 1 1/2 hp 1800 RPM 230/460V 3-Phase 145T Frame TEFC (Rigid Base) Washdown Motor

The N321A Marathon motor is a durable 1 1/2 horsepower, 3-phase electric motor designed for washdown environments where exposure to fresh water is common. It is ideal for replacing or upgrading motors in industrial applications requiring reliable, totally enclosed fan-cooled (TEFC) performance.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage: 230/460V
• Amperage: 4.8/2.4 amps
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 145T frame
• Shaft Dimensions: 7/8" diameter x 2 1/4" length, stainless steel keyed shaft
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a rigid base for secure mounting and is equipped with Class F insulation for enhanced thermal protection. It does not include overload protection and is designed for use with three-phase power at 60 Hz. Wiring diagrams are provided on the motor nameplate to assist with installation.

Warranty

1 Year Manufacturer Warranty
