NP0024 TECO-Westinghouse 2 hp 1800 RPM 145T 230/460V TEFC Severe Duty 3-Ph Motor

NP0024 TECO-Westinghouse 2 hp 1800 RPM 145T 230/460V TEFC Severe Duty 3-Ph Motor

This TECO-Westinghouse NEMA Premium electric motor is designed for severe duty industrial applications, providing reliable performance and inverter compatibility. It serves as a general-purpose replacement motor suitable for various three-phase systems requiring robust operation.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 5.56/2.78 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP56

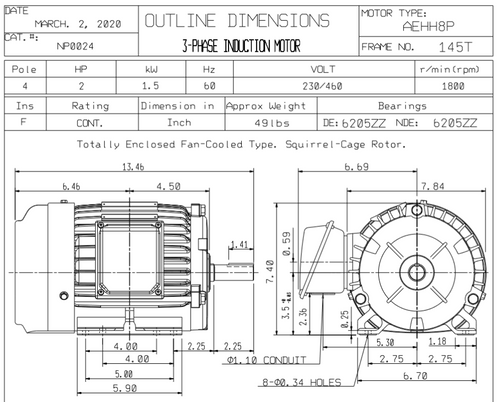

• Frame / Diameter: NEMA 145T
• Shaft Dimensions: 2 1/4" length x 7/8" diameter, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

Constructed with a cast iron frame and rigid base, this motor is built for durability in demanding environments. It features Class F insulation and is suitable for inverter use per NEMA MG-1 Part 31.4.4.2, supporting a variable torque speed range of 20:1 and constant torque speed range of 10:1. The motor does not include thermal overload protection and is designed for straightforward installation with reversible rotation and standard mounting.

Warranty

1 Year Manufacturer Warranty
