NP0404S TECO-Westinghouse 40 hp 1800 RPM 324TS 230/460V TEFC Severe Duty 3-Ph Motor
NP0404S TECO-Westinghouse 40 hp 1800 RPM 324TS 230/460V TEFC Severe Duty 3-Ph Motor
NP0404S TECO-Westinghouse 40 hp 1800 RPM 324TS 230/460V TEFC Severe Duty 3-Ph Motor
NP0404S TECO-Westinghouse 40 hp 1800 RPM 324TS 230/460V TEFC Severe Duty 3-Ph Motor

TECO WESTINGHOUSE

NP0404S TECO-Westinghouse 40 hp 1800 RPM 324TS 230/460V TEFC Severe Duty 3-Ph Motor

(No reviews) Write a Review
$2,990.00
$2,755.34
SKU NP0404S
Shipping Calculated at Checkout
Voltage 230/460V
Horsepower 40 HP
RPM 1800
Phase Three Phase
Frame 324TS
Enclosure TEFC
Hertz 60 Hz
Amperage 92.6/46.3 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Severe Duty
Adding to cart… The item has been added
Description

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 40 hp 1800 RPM, 92.6/46.3 amps 230/460 Volts 60 Hz. Three Phase

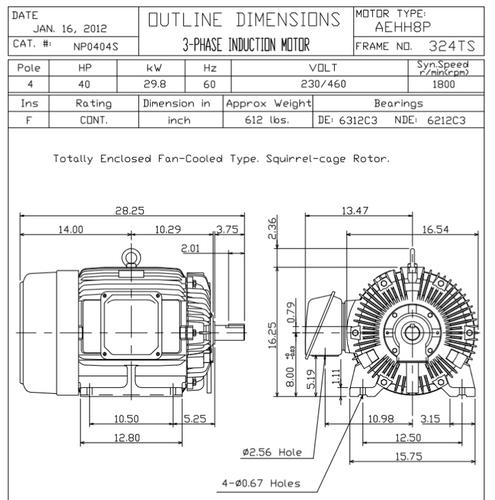

  • NEMA 324TS Frame, 3 3/4 x 1 7/8" Dia. Keyed Shaft
  • Cast Iron Frame, Totally Enclosed Fan Cooled (IP56)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

General purpose motor for use in severe duty applications.

Specifications
Voltage 230/460V
Horsepower 40 HP
RPM 1800
Phase Three Phase
Frame 324TS
Enclosure TEFC
Hertz 60 Hz
Amperage 92.6/46.3 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Severe Duty
!
