NP0404 TECO-Westinghouse 40 hp 1800 RPM 324T 230/460V TEFC Severe Duty 3-Ph Motor

NP0404 TECO-Westinghouse 40 hp 1800 RPM 324T 230/460V TEFC Severe Duty 3-Ph Motor

The TECO-Westinghouse NP0404 is a general-purpose, severe duty electric motor designed for industrial applications requiring reliable performance and durability. It is a premium NEMA motor suitable for replacing similar 40 hp, 1800 RPM three-phase motors in demanding environments.

Key Specifications

• Horsepower: 40 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 92.6/46.3 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP56

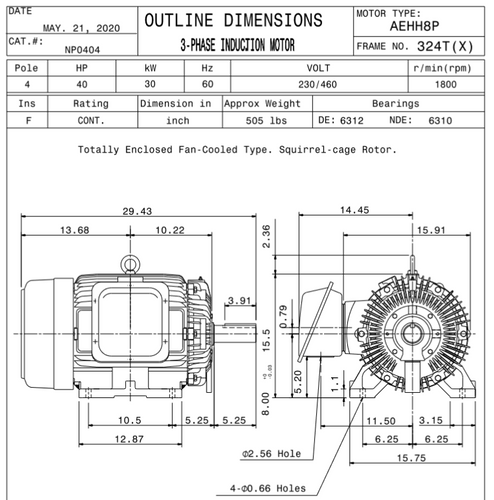

• Frame / Diameter: NEMA 324T Frame, 5 1/4 x 2 1/8" Diameter
• Shaft Dimensions: Keyed Shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

Constructed with a cast iron frame and rigid base, this motor provides enhanced durability and stability for severe duty applications. It features Class F insulation and is suitable for inverter use per NEMA MG-1 Part 31.4.4.2, supporting variable torque speed ranges of 20:1 and constant torque ranges of 10:1. The motor is designed for easy installation with reversible rotation and includes ball bearings for long service life.

Warranty

1 Year Manufacturer Warranty
