NP0156G TECO-Westinghouse 15 hp 1200 RPM 284T 230/460V TEFC Severe Duty SGR 3-Ph Motor

NP0156G TECO-Westinghouse 15 hp 1200 RPM 284T 230/460V TEFC Severe Duty SGR 3-Ph Motor

The NP0156G is a TECO-Westinghouse three-phase electric motor designed for severe duty industrial applications. It is a reliable replacement motor featuring a NEMA Premium design, suitable for use in electrically challenging environments.

Key Specifications

• Horsepower: 15 hp
• RPM: 1200
• Voltage: 230/460 V
• Amperage: 36.4/18.2 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP56

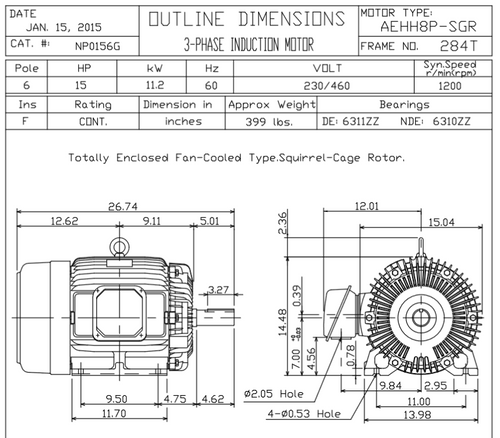

• Frame / Diameter: NEMA 284T Frame, 5 x 1 7/8" Diameter
• Shaft Dimensions: Keyed Shaft
• Rotation: Reversible
• Bearings: Ball Bearings with SGR bearing protection ring

Product Features & Fitment

This motor features a cast iron rigid base frame and Class F insulation for enhanced durability. It is suitable for inverter use, complying with NEMA MG-1 Part 31.4.4.2 standards, supporting a speed range of 20:1 for variable torque and 10:1 for constant torque applications. The SGR bearing protection ring diverts harmful voltages from the bearings, making it ideal for electrically risky environments.

Warranty

1 Year Manufacturer Warranty
