NP0156 TECO-Westinghouse 15 hp 1800 RPM 284T 230/460V TEFC Severe Duty 3-Ph Motor

SKU:
NP0156
Weight:
413.00 LBS
Shipping:
Calculated at Checkout
$1,633.21
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 15 hp 1200 RPM, 36.4/18.2 amps 230/460 Volts 60 Hz. Three Phase

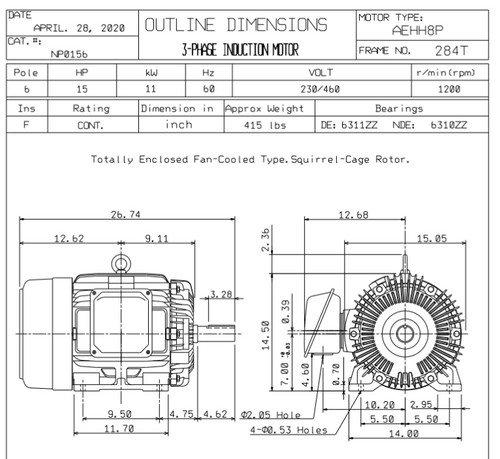

  • NEMA 284T Frame, 4 5/8 x 1 7/8" Dia. Keyed Shaft
  • Cast Iron Frame, Totally Enclosed Fan Cooled (IP56)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

General purpose motor for use in severe duty applications.
