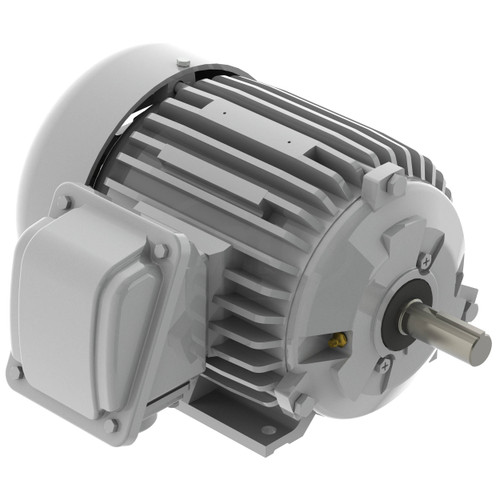

NP0202 TECO-Westinghouse 20 hp 3600 RPM 256T 230/460V TEFC Severe Duty 3-Ph Motor

NP0202 TECO-Westinghouse 20 hp 3600 RPM 256T 230/460V TEFC Severe Duty 3-Ph Motor

This TECO-Westinghouse NEMA Premium electric motor is designed for severe duty industrial applications requiring reliable performance and durability. It is a general-purpose replacement motor suitable for three-phase power systems operating at 230/460 volts.

Key Specifications

• Horsepower: 20 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 43.8/21.9 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP56
• Frame / Diameter: NEMA 256T, 4 x 1 5/8" diameter
• Shaft Dimensions: Keyed shaft
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

Constructed with a cast iron frame and a rigid base, this motor is built for durability and stability in demanding environments. It features Class F insulation and is suitable for inverter use with variable and constant torque speed ranges, meeting NEMA MG-1 Part 31.4.4.2 standards. The motor is designed for easy installation and operation in severe duty applications.

Warranty

1 Year Manufacturer Warranty
