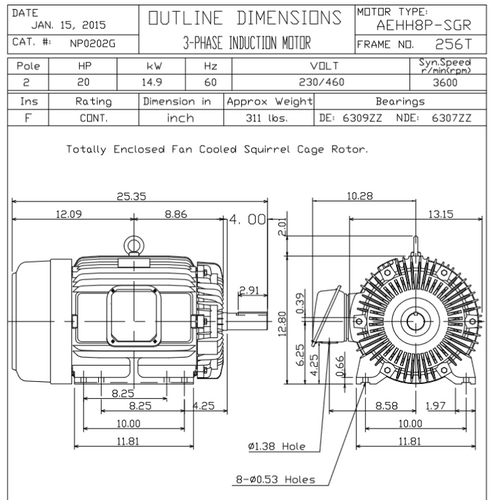

NP0202G TECO-Westinghouse 20 hp 3600 RPM 256T 230/460V TEFC Severe Duty SGR 3-Ph Motor
The NP0202G is a premium NEMA electric motor designed for industrial applications requiring reliable, high-performance operation. It replaces standard motors in severe duty environments and is suitable for use with variable frequency drives.
Key Specifications
- Horsepower: 20 hp
- RPM: 3600
- Voltage: 230/460 V
- Amperage: 43.8/21.9 A
- Enclosure: Totally Enclosed Fan Cooled (TEFC), IP56
- Frame / Diameter: NEMA 256T Frame, 4 x 1 5/8" Dia.
- Rotation: Reversible
- Bearings: Ball Bearings with SGR bearing protection ring
Product Features & Fitment
This motor features a cast iron rigid base frame and Class F insulation, providing durability and thermal resistance. It is designed for inverter duty with a speed range of 20:1 for variable torque and 10:1 for constant torque, compliant with NEMA MG-1 Part 31.4.4.2 standards. The SGR bearing protection ring diverts harmful voltages, making it ideal for electrically risky environments. The motor is UL recognized, CSA approved, and CE marked for safety and quality assurance.
Warranty
1 Year Manufacturer Warranty
