NP0254 TECO Westinghouse 25 hp 1800 RPM 284T Frame 230/460V TEFC 3-Phase Motor

SKU:: NP0254
UPC:
Weight:: 427.00 LBS
Width:: 28.00 (in)
Height:: 19.00 (in)
Depth:: 23.00 (in)
Shipping:: Calculated at Checkout
Voltage:: 230/460V
Horsepower:: 25 HP
RPM:: 1800
Phase:: Three Phase
Frame:: 284T
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 58.2/29.1 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class F
Mounting:: Rigid Base
Duty:: SEVERE DUTY

Current Stock:

$1,756.51

Quantity:

Adding to cart… The item has been added

Description
Literature

NP0254 TECO Westinghouse 25 hp 1800 RPM 284T Frame 230/460V TEFC 3-Phase Motor

The NP0254 is a severe duty, NEMA Premium electric motor designed for industrial applications such as fans, blowers, pumps, crushers, compressors, mixers, and conveyors. It is a reliable replacement motor featuring a TEFC enclosure and compatibility with inverter drives.

Key Specifications

Horsepower: 25 hp
RPM: 1800
Voltage: 230/460 V
Amperage: 58.2/29.1 A
Enclosure: Totally Enclosed Fan Cooled (TEFC), IP54

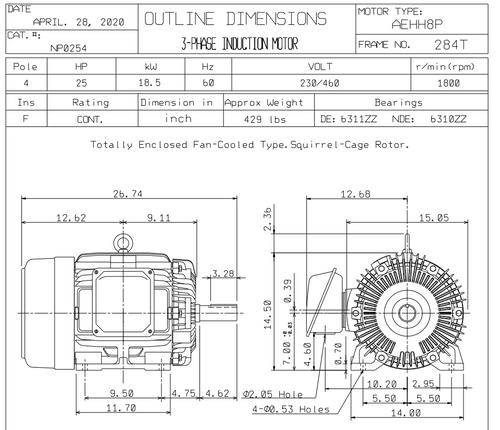

Frame / Diameter: NEMA 284T
Shaft Dimensions: Keyed shaft, 1 7/8" diameter x 4 5/8" length
Rotation: Reversible
Bearings: Ball bearings

Product Features & Fitment

Constructed with a cast iron rigid base, this motor is built for durability and long service life. It features Class F insulation and is suitable for inverter duty operation with a speed range of 20:1 for variable torque and 10:1 for constant torque, meeting NEMA MG-1 Part 31.4.4.2 standards. The motor is UL recognized, CSA approved, and CE marked for safety and compliance.
