NP0034 TECO Westinghouse 3 hp 1800 RPM 182T Frame 230/460V TEFC 3-Phase Motor

SKU:: NP0034
UPC:
Weight:: 85.00 LBS
Width:: 17.00 (in)
Height:: 15.00 (in)
Depth:: 13.00 (in)
Shipping:: Calculated at Checkout
Voltage:: 230/460V
Horsepower:: 3 HP
RPM:: 1800
Phase:: Three Phase
Frame:: 182T
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 7.48/3.74 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class F
Mounting:: Rigid Base
Duty:: SEVERE DUTY

Current Stock:

$421.71

Quantity:

Adding to cart… The item has been added

Description
Literature

NP0034 TECO Westinghouse 3 hp 1800 RPM 182T Frame 230/460V TEFC 3-Phase Motor

The TECO Westinghouse NP0034 is a severe duty, NEMA Premium electric motor designed for industrial applications such as fans, blowers, pumps, crushers, compressors, mixers, and conveyors. It is a reliable replacement motor featuring a 3 hp output and 1800 RPM speed, suitable for three-phase power systems.

Key Specifications

Horsepower: 3 hp
RPM: 1800
Voltage: 230/460 V
Amperage: 7.48/3.74 A
Enclosure: Totally Enclosed Fan Cooled (TEFC), IP54

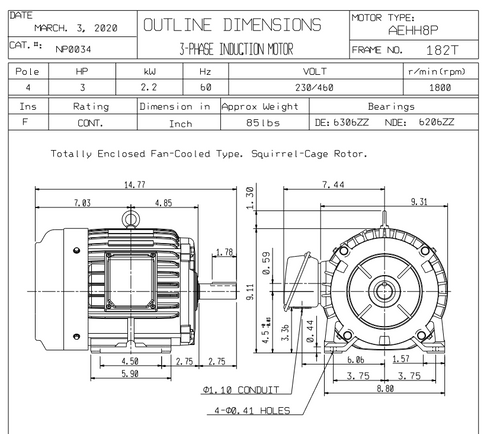

Frame / Diameter: NEMA 182T Frame
Shaft Dimensions: Keyed shaft, 1 1/8" diameter x 2 3/4" length
Rotation: Reversible
Bearings: Ball bearings

Product Features & Fitment

Constructed with a cast iron rigid base, this motor is built for durability and ease of installation. It features Class F insulation and is suitable for inverter use per NEMA MG-1 Part 31.4.4.2, supporting a variable torque speed range of 20:1 and constant torque range of 10:1. The motor is designed without thermal overload protection and includes a keyed shaft for secure coupling.
