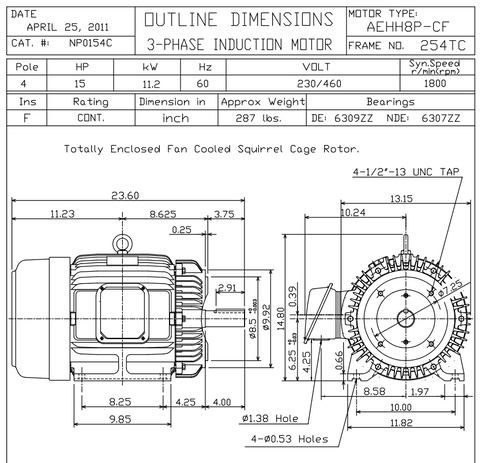

NP0154C TECO Westinghouse 15 hp 1800 RPM 254TC Frame 230/460V TEFC 3-Phase Motor

NP0154C TECO Westinghouse 15 hp 1800 RPM 254TC Frame 230/460V TEFC 3-Phase Motor

The NP0154C is a severe duty, premium efficiency TECO Westinghouse electric motor designed for industrial applications such as fans, blowers, pumps, crushers, compressors, mixers, and conveyors. It is engineered to replace standard motors requiring robust performance and inverter compatibility.

Key Specifications

• Horsepower: 15 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 34.5/17.3 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP54
• Frame / Diameter: NEMA 254TC Frame
• Shaft Dimensions: Keyed shaft, 1 5/8" diameter x 4" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

Constructed with a cast iron rigid base, this motor features Class F insulation and is suitable for inverter use in accordance with NEMA MG-1 Part 31.4.4.2 standards. It supports a wide inverter duty speed range of 20:1 for variable torque and 10:1 for constant torque applications. The motor is designed for straightforward installation with a keyed shaft and reversible rotation to accommodate various mounting configurations.

Warranty

1 Year Manufacturer Warranty
