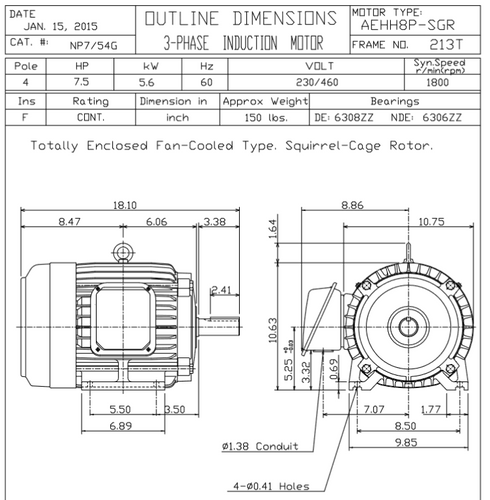

NP7/54G TECO-Westinghouse 7 1/2 hp 3600 RPM 213T 230/460V TEFC Severe Duty SGR 3-Ph Motor

SKU:
NP7/54G
Weight:
151.00 LBS
Shipping:
Calculated at Checkout
$786.09
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 7 1/2 hp 1800 RPM, 17.7/8.85 amps 230/460 Volts 60 Hz. Three Phase
  • NEMA 213T Frame, 3 3/8 x 1 3/8" Dia. Keyed Shaft
  • Cast Iron Frame, Totally Enclosed Fan Cooled (IP56)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

For use in electrically risky environments. It uses an SGR bearing protection ring to divert harmful voltages from the bearing.
