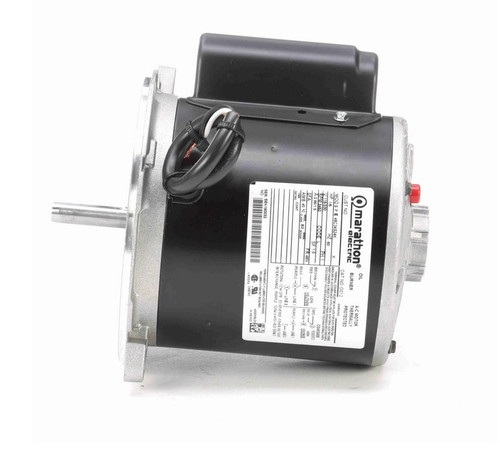

O012 Marathon 1/5 HP (1 Speed) 115/230V 3450 RPM 48N Cap Start Oil Burner Motor

O012 Marathon 1/5 HP (1 Speed) 115/230V 3450 RPM 48N Cap Start Oil Burner Motor

This Marathon oil burner motor is a direct replacement designed for oil burning furnaces, providing reliable performance with a single-speed, reversible rotation. It is ideal for applications requiring a 1/5 horsepower motor with capacitor start functionality.

Key Specifications

• Horsepower: 1/5 HP
• RPM: 3450
• Voltage: 115/230V, 60 Hz
• Amperage: 3.0/1.5 Amps
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 48N

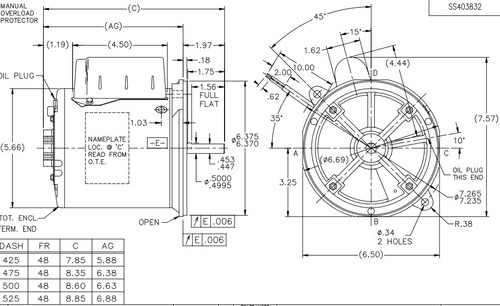

• Shaft Dimensions: 2" Long x 1/2" Diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start and manual thermal protection, ensuring efficient startup and operational safety. It is mounted on an oil burner frame and designed for easy installation as a direct replacement for models such as 048C34S24.

Cross Reference

• motors in oil burning furnaces.  048C34S24
• ~

Warranty

1 Year Manufacturer Warranty
