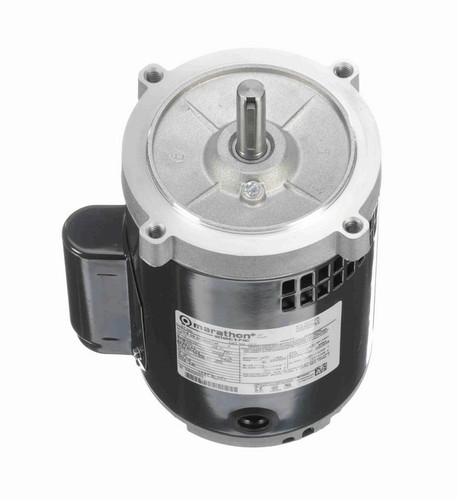

O210 Marathon 1/3 HP (1 Speed) 115/208-230V 3450 RPM ODP 56C Cap Start Oil Burner Motor

O210 Marathon 1/3 HP Oil Burner Motor (1 Speed, 115/208-230V, 3450 RPM, ODP 56C Cap Start)

This Marathon oil burner motor is designed as a direct replacement for motors in oil burning furnaces, including model 056C34D2114. It provides reliable single-speed operation with reversible rotation, suitable for various HVAC and industrial applications.

Key Specifications

• Horsepower: 1/3 HP
• RPM: 3450
• Voltage: 115/208-230V, 60 Hz
• Amperage: 5.6 / 2.7-2.8 Amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56C
• Shaft Dimensions: 2" Long x 5/8" Diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start and Class B insulation for enhanced durability and performance. It includes an oil burner mount compatible with standard furnace installations. The motor’s service factor of 1.75 and automatic thermal protection ensure reliable operation under varying loads.

Cross Reference

• motors in oil burning furnaces. 056C34D2114
• ~

Warranty

1 Year Manufacturer Warranty
