sale
Marathon

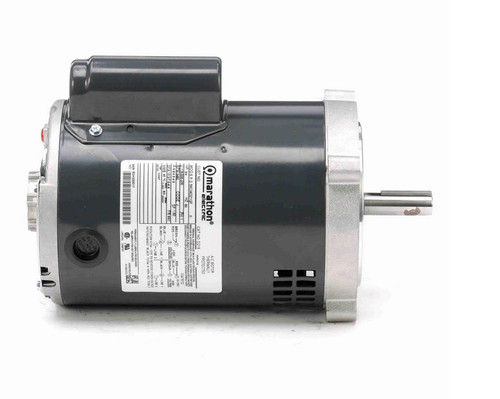

O215 Marathon 3/4 HP (1 Speed) 115/208-230V 3450 RPM ODP 56C Cap Start Oil Burner Motor
(No reviews)
Write a Review
Write a Review
Marathon
O215 Marathon 3/4 HP (1 Speed) 115/208-230V 3450 RPM ODP 56C Cap Start Oil Burner Motor
$277.27
$240.93
SKU
O215
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
3/4 HP
RPM
3450
Frame
56C
Enclosure
ODP
Hertz
60 Hz
Amperage
4.9 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class B
Rotation
Reversible
O215 Marathon 3/4 HP (1 Speed) 115/208-230V 3450 RPM ODP 56C Cap Start Oil Burner Motor
This Marathon oil burner motor is designed as a direct replacement for motors in oil burning furnaces, including model 056C34D2112. It provides reliable single-speed operation with reversible rotation, suitable for various heating applications.
Key Specifications
- Horsepower: 3/4 HP
- RPM: 3450
- Voltage: 115/208-230V, 60 Hz
- Amperage: 9.8/4.9-4.9 Amps
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 56C
- Shaft Dimensions: 2" Long x 5/8" Diameter
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a capacitor start and Class B insulation for efficient and durable performance. It includes an oil burner mount compatible with standard furnace setups and requires manual thermal protection. The NEMA 56C frame ensures compatibility with common mounting configurations.
Cross Reference
- motors in oil burning furnaces. 056C34D2112
- ~
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 3/4 HP |
| RPM | 3450 |
| Frame | 56C |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 4.9 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class B |
| Rotation | Reversible |
- motors in oil burning furnaces. 056C34D2112
- ~
