OL2052D Century Oil Burner Motor 1/2 hp 3450 RPM 48N Frame 115/230V

OL2052D Century Oil Burner Motor 1/2 hp 3450 RPM 48N Frame 115/230V

The OL2052D is a reliable 1/2 horsepower oil burner motor designed for efficient operation in residential and commercial heating systems. It serves as a direct replacement for models including Century 316P939, Dayton 6K547, and others, ensuring compatibility and performance in oil burner applications.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 3450
• Voltage: 115/230V, 50/60 Hz
• Amperage: 8.2/4.1 amps

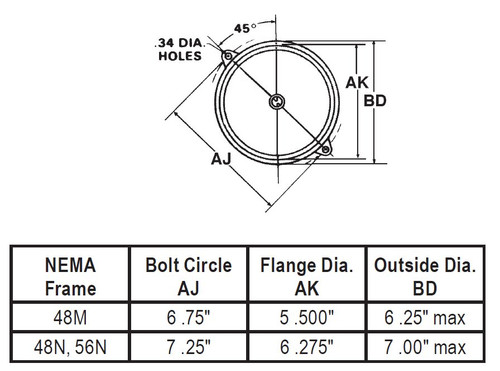

• Frame / Diameter: 48N
• Shaft Dimensions: 1/2" diameter x 1 13/16" length
• Rotation: Reversible

Product Features & Fitment

This motor features manual thermal protection and a service factor of 1.0 for dependable operation. It includes 12.25-inch leads for flexible wiring during installation. The reversible rotation and standard 48N frame allow for straightforward mounting in compatible oil burner assemblies.

Warranty

1 Year Manufacturer Warranty
