P231M2 Century Motor 5 hp 3600 RPM 230V 1-phase 184JM Frame Close-Coupled Pump Motor

SKU:: P231M2
UPC:
Weight:: 99.00 LBS
Width:: 23.00 (in)
Height:: 17.00 (in)
Depth:: 14.00 (in)
Shipping:: Calculated at Checkout
Voltage:: 230V
Horsepower:: 5 HP
RPM:: 3600
Phase:: Single Phase
Frame:: 184JM
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 22.7 Amps
Bearings:: Ball Bearings
Insulation Class:: Class F
Rotation:: Reversible

Current Stock:

$805.32

Quantity:

Adding to cart… The item has been added

Description
Literature

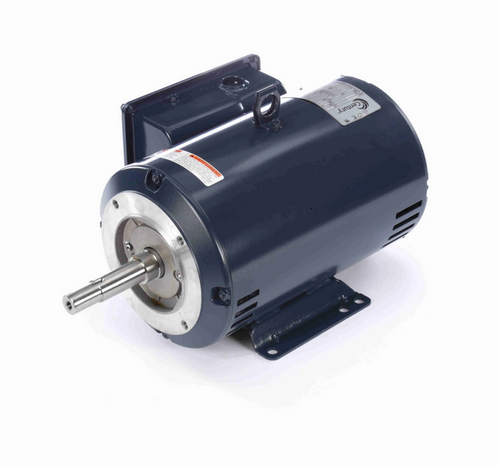

P231M2 Century Motor 5 hp 3600 RPM 230V 1-phase 184JM Frame Close-Coupled Pump Motor

The P231M2 Century Motor is a 5 horsepower, single-phase pump motor designed for reliable operation in close-coupled pump applications. It replaces standard 184JM frame motors and is ideal for use in industrial and commercial pumping systems requiring a compact, efficient motor.

Key Specifications

Horsepower: 5 HP
RPM: 3600
Voltage: 230V
Amperage: 22.7 amps
Enclosure: Totally Enclosed Fan Cooled (TEFC)
Frame / Diameter: NEMA 184JM Rolled Steel Frame
Shaft Dimensions: Stainless steel shaft
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This motor features a close-coupled design, where the pump impeller mounts directly on the motor shaft, simplifying installation and reducing alignment issues. It includes a removable base for flexible mounting options and incorporates an auto overload thermal protection system with Class F insulation for enhanced durability and safety.
