P254 Marathon 1/3 hp 115V 1800 RPM ODP 56 Frame PSC Instant Reversing Motor

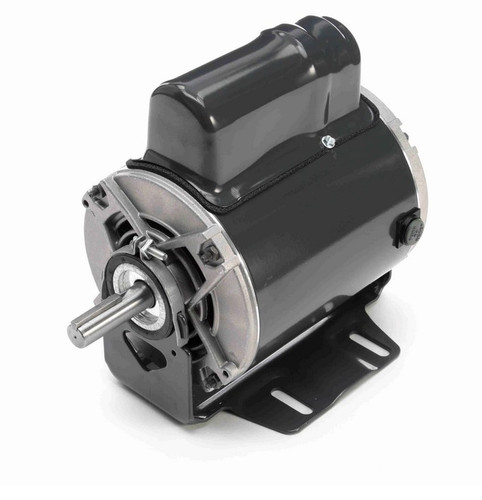

This Marathon 1/3 horsepower motor is designed for applications requiring fast and reliable motor reversals. It features a permanently split capacitor (PSC) design and is suitable for replacing similar 56 frame motors in HVAC and industrial equipment.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800 forward, 1400 reverse
• Voltage: 115 V, 60 Hz
• Amperage: 3.8 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame

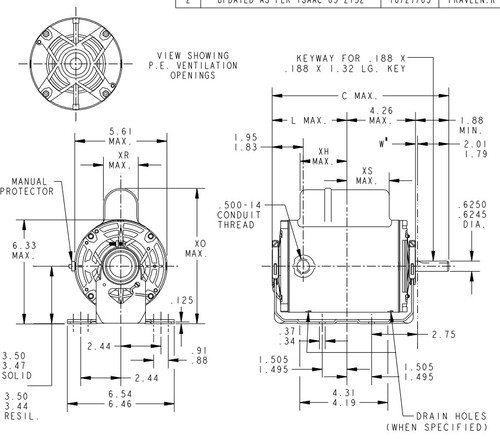

• Shaft Dimensions: 1 7/8" length x 5/8" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor includes a rigid base for stable mounting and is designed for horizontal shaft orientation to ensure optimal performance. It does not include thermal protection and operates at a service factor of 1.0. The motor’s instant reversing capability makes it ideal for applications requiring quick directional changes.

Warranty

1 Year Manufacturer Warranty
