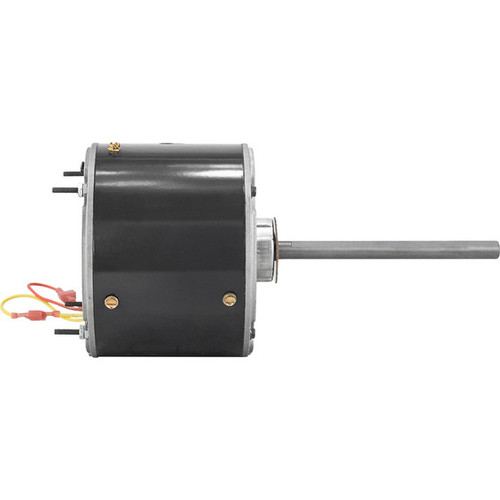

P3736 - 1/4HP 460V Condenser Fan Motor - Replaces EM3736F

P3736 - 1/4HP 460V Condenser Fan Motor - Replaces EM3736F

The PEMS P3736 is a direct replacement condenser fan motor designed to fit and perform like the Century EM3736F and equivalent models. Ideal for HVAC applications, this motor ensures reliable operation in condenser fan assemblies requiring a 1/4 HP, 460V motor.

Key Specifications

• Horsepower: 1/4 HP
• RPM: 1075
• Voltage: 460 Volt
• Amperage: 0.80 Amp
• Enclosure: TEAO (Totally Enclosed Air Over)
• Frame / Diameter: 48Y Frame
• Bearings: Ball Bearing

Product Features & Fitment

This motor includes a 7.5 MFD, 370V capacitor for easy installation and optimal starting performance. It features an automatic overload protector and is rated for operation in ambient temperatures up to 70 degrees Celsius. The P3736 is compatible with multiple cross-referenced models including Century EM3736F, FEH1026SF, Mars 20836, Smart Electric SE4128, Nidec 3736H, Diversitech/Wagner WG840736HT, and Grainger 111N84, ensuring broad fitment across various HVAC systems.

Cross Reference

• - Century EM3736F, FEH1026SF, 788A, Mars 20836, Smart Electric SE4128, Nidec 3736H, Diversitech/Wagner WG840736HT, Grainger 111N84
