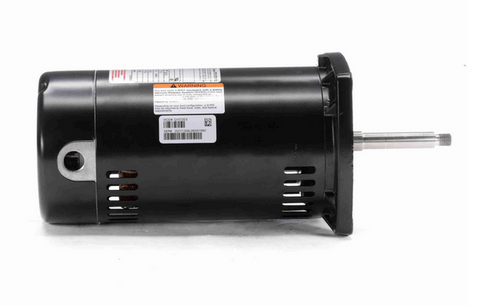

Q1072ES Century 3/4 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 115/230V Jet Pump Motor

Q1072ES Century 3/4 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 115/230V Jet Pump Motor

SKU:
Q1072ES
Weight:
21.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $270.20
Now: $229.00
Adding to cart… The item has been added
  • 3/4 hp 3600 RPM, 14.8/7.4 amps 115/230 Volts 60hz. Capacitor Start, Extended Shaft
  • NEMA 48Y frame, Square-Flange, Threaded Stainless Steel Shaft 1/2" Diameter x 5 3/4"
  • Service Factor: 1.65, Overload protection = Auto
  • No Base, CCW pump end, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

Direct replacement for motor for Sta-Rite pool and spa pumps requiring a single phase electric motor with a square-flange. Wiring diagram on motor name plate. ODP = Open Drip Proof. Q1072ES. Replaces Sta-Rite A700DH

!
