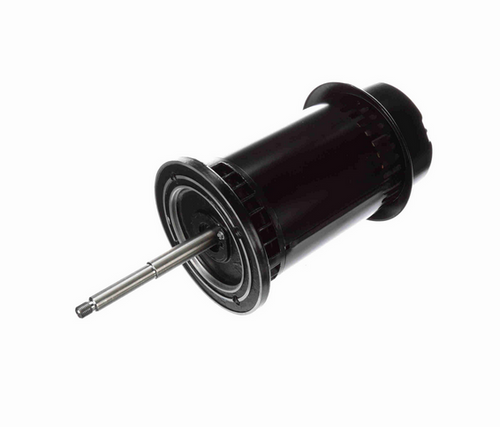

R1102ES Century 1 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 115/230V Century Jet Pump Motor # R1102ES

R1102ES Century 1 hp 3600 RPM 1-Phase 48Y Frame ODP Jet Pump Motor

This Century 1 hp, 3600 RPM single-phase motor is designed as a direct replacement for Sta-Rite pool and spa pumps requiring a round-flange motor. It operates at 115/230V and is ideal for jet pump applications.

Key Specifications

• Horsepower: 1 hp
• RPM: 3600
• Voltage: 115/230V
• Amperage: 19.2/9.6 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48Y frame, Round-Flange
• Shaft Dimensions: Threaded stainless steel shaft, 1/2" diameter x 5 3/4" length
• Rotation: Counterclockwise (CCW) pump end
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start and an extended shaft for enhanced performance. It includes an auto overload protection system and Class B insulation. The motor is supplied without a base and comes with a wiring diagram on the nameplate for easy installation. It replaces the Sta-Rite A300EH model.

Cross Reference

• motor for Sta-Rite pool and spa pumps requiring a single phase electric motor with a round-flange. Wiring diagram on motor name plate. ODP = Open Drip Proof. R1102ES. Replaces Sta-Rite A300EH

Warranty

1 Year Manufacturer Warranty
