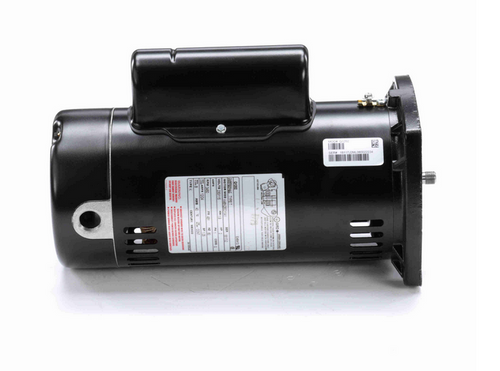

Q1202 Century 2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 115/230V Century Jet Pump Motor # Q1202

Q1202 Century 2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 115/230V Century Jet Pump Motor

This Century jet pump motor is designed for pool and spa pumps requiring a single-phase electric motor with a square-flange mount. It serves as a reliable replacement motor featuring an open drip proof (ODP) enclosure for effective ventilation in various applications.

Key Specifications

• Horsepower: 2 hp
• RPM: 3600
• Voltage: 115/230V, 60 Hz
• Amperage: 24.0/12.0 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48Y frame, Square-Flange
• Shaft Dimensions: Threaded shaft 1/2" diameter x 1 1/2" length
• Rotation: Counterclockwise (CCW) pump end
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a capacitor start/run design with a service factor of 1.25 and automatic overload protection. It comes without a base and includes a wiring diagram on the motor nameplate for easy installation. The square-flange mount ensures compatibility with standard pump assemblies requiring a 48Y frame motor.

Warranty

1 Year Manufacturer Warranty
