Q1052 Century 1/2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 115/230V Century Jet Pump Motor # Q1052

SKU:: Q1052
UPC:
Weight:: 18.00 LBS
Width:: 10.00 (in)
Height:: 10.00 (in)
Depth:: 16.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115/230V
Horsepower:: 1/2 HP
RPM:: 3600
Phase:: Single Phase
Frame:: 48Y
Enclosure:: ODP
Hertz:: 60 Hz
Amperage:: 12.4/6.2 Amps
Bearings:: Ball Bearings
Service Factor:: 1.9
Insulation Class:: Class B
Mounting:: Flange

Current Stock:

Was: $271.29

Now: $229.89

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

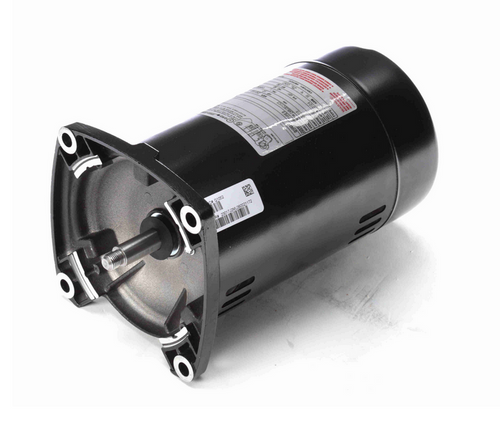

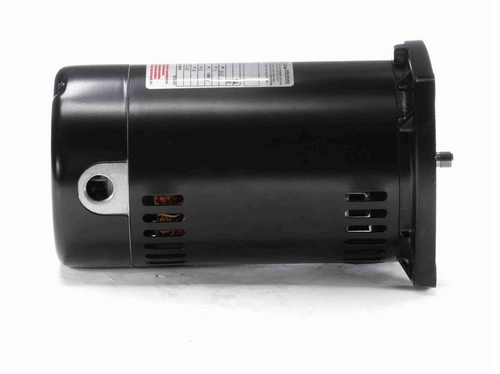

Q1052 Century 1/2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 115/230V Century Jet Pump Motor

This Century jet pump motor is designed for pool and spa pumps requiring a single-phase electric motor with a square-flange mount. It serves as a reliable replacement motor with a 1/2 horsepower rating and supports both 115V and 230V operation.

Key Specifications

Horsepower: 1/2 hp
RPM: 3600
Voltage: 115/230 V, 60 Hz
Amperage: 12.4/6.2 A
Enclosure: Open Drip Proof (ODP)
Frame / Diameter: NEMA 48Y frame
Shaft Dimensions: 1/2" diameter x 1 1/2" length, threaded
Rotation: Counterclockwise (CCW) pump end
Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start and an auto overload protection system with a service factor of 1.9. It includes a square-flange mount without a base, facilitating direct replacement in compatible pump assemblies. The wiring diagram is conveniently located on the motor nameplate for easy installation.
