Century Electric Motor

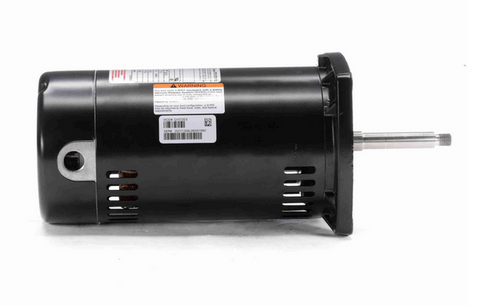

Q1072ES Century 3/4 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 115/230V Jet Pump Motor
(No reviews)
Write a Review
Write a Review
Century Electric Motor
Q1072ES Century 3/4 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 115/230V Jet Pump Motor
$310.73
$263.35
SKU
Q1072ES
UPC
7.87E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/230V
Horsepower
3/4 HP
RPM
3600
Phase
Single Phase
Frame
48Y
Enclosure
ODP
Hertz
60 Hz
Amperage
14.8/7.4 Amps
Bearings
Ball Bearings
Service Factor
1.65
Insulation Class
Class B
- 3/4 hp 3600 RPM, 14.8/7.4 amps 115/230 Volts 60hz. Capacitor Start, Extended Shaft
- NEMA 48Y frame, Square-Flange, Threaded Stainless Steel Shaft 1/2" Diameter x 5 3/4"
- Service Factor: 1.65, Overload protection = Auto
- No Base, CCW pump end, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
Direct replacement for motor for Sta-Rite pool and spa pumps requiring a single phase electric motor with a square-flange. Wiring diagram on motor name plate. ODP = Open Drip Proof. Q1072ES. Replaces Sta-Rite A700DH
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/230V |
| Horsepower | 3/4 HP |
| RPM | 3600 |
| Phase | Single Phase |
| Frame | 48Y |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 14.8/7.4 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.65 |
| Insulation Class | Class B |
