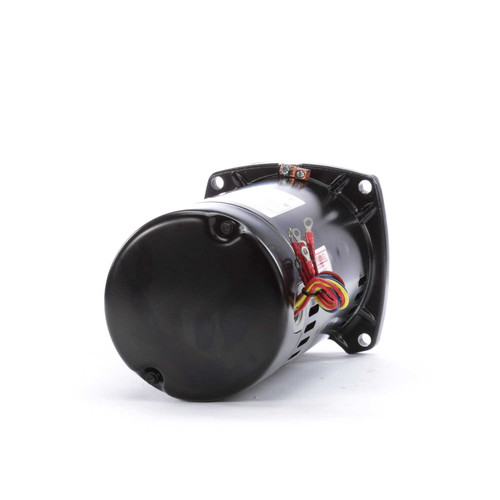

Q3052 Century 1/2 hp 3450 RPM 48Y Frame 208-230/460V Square Flange Pool Motor # Q3052

Q3052 Century 1/2 hp 3450 RPM 48Y Frame 208-230/460V Square Flange Pool Motor

This Century 1/2 HP three-phase pool motor is designed as a direct replacement for pumps requiring a 48Y frame with a square flange mount. It operates at 3450 RPM and supports 208-230/460V power supplies, making it suitable for various industrial and pool pump applications.

Key Specifications

• Horsepower: 1/2 HP
• RPM: 3450
• Voltage: 208-230/460 V, Three Phase
• Amperage: 3.0/1.5 A
• Enclosure: Open Drip Proof
• Frame / Diameter: 48Y Frame, Square Flange
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Reversible (CCW facing shaft recommended)
• Bearings: Sealed Ball Bearings

Product Features & Fitment

This motor features a square flange with four non-threaded bolt holes for secure pump mounting. It includes a wiring diagram on the motor nameplate for straightforward installation. Due to the reversible nature of three-phase power, a quick rotation test is recommended to ensure proper counterclockwise rotation when facing the shaft.

Warranty
