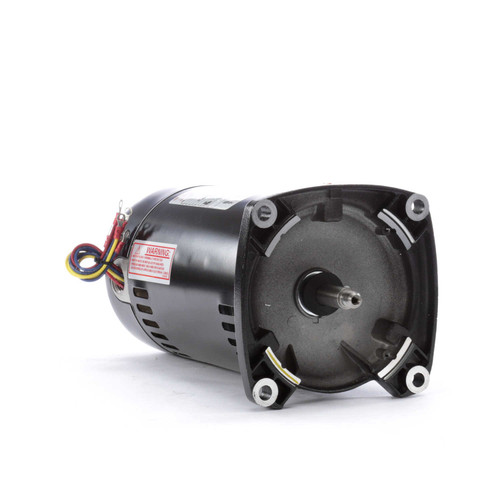

Q3152 Century 1.5 hp 3450 RPM 48Y Frame 208-230/460V Square Flange Pool Motor # Q3152

Q3152 Century 1.5 hp 3450 RPM 48Y Frame 208-230/460V Square Flange Pool Motor

This Century three-phase pool motor is designed as a direct replacement pump motor featuring a square flange mount. It is ideal for applications requiring a reliable 1.5 HP motor with versatile voltage compatibility.

Key Specifications

• Horsepower: 1.5 HP
• RPM: 3450
• Voltage: 208-230/460V, Three Phase, 60 Hz
• Amperage: 6.8/3.4 amps
• Enclosure: Open Drip Proof
• Frame / Diameter: 48Y Frame
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Reversible (CCW facing shaft is proper rotation)
• Bearings: Sealed Ball Bearings

Product Features & Fitment

The motor mounts via a square flange with four non-threaded bolt holes, ensuring compatibility with standard pump mounts. It includes a wiring diagram on the motor nameplate for easy installation. Due to the reversible nature of three-phase power, a quick rotation test is recommended to confirm proper counterclockwise rotation when facing the shaft.

Warranty
