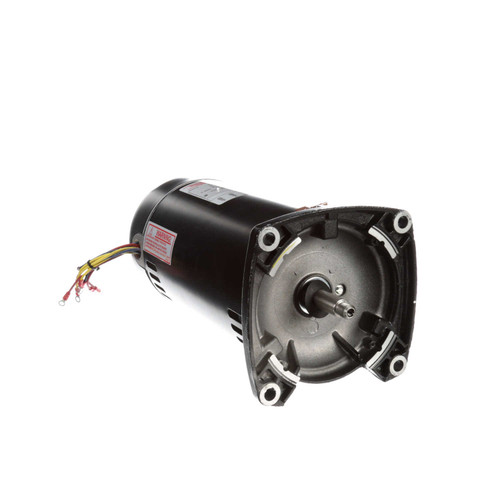

Century 48Y Square Flange - Three Phase Pump Motor
- 2 HP 3450 RPM 8.5/4.25 amps
- 208-230/460 Volts, Three Phase, 60hz
- No Overload Protection - Service Factor 1.30
- Open Drip Proof - Sealed Ball Bearings
- Ambient Temp: 50°C
- 5/8" diameter threaded stainless steel shaft
- Wiring diagram on motor name plate
- 1 year warranty
Square Flange replacement pump motor. This is a three phase motor. Motor has a square type flange for mounting the pump. 4 non-threaded bolts holes in flange.
Since three phase power is reversible, it's recommended to quick test to check the motors rotation, CCW facing the shaft is the proper rotation
Century Mod No. P48N2EB7A1
US Electric Equivalent EH637
